This product is no longer in production.
We advice you an alternative solution. Go to it here.
CrazyWriter HSP PC/SC
Turnkey OEM USB PC/SC contactless/RFID/NFC coupler solution
Like the other SpringCard USB readers/writers, the CrazyWriter HSP is in compliance with the PC/SC standard. The software integration and the application development are thus really easy. Moreover, the speed of the USB interface combined to the high rate of the ISO 14443 standard enable the TwistyWriter HSP to reach the best transaction speed.

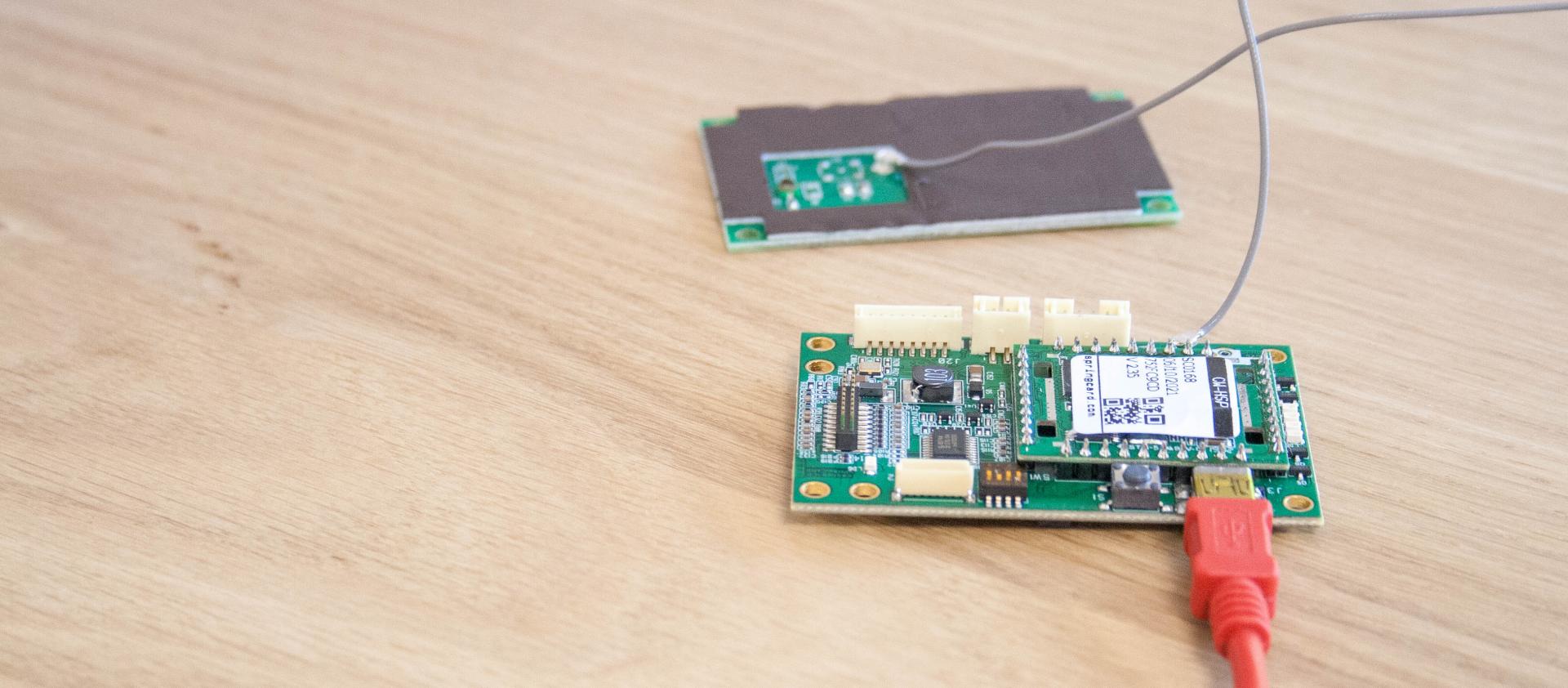

The CrazyWriter HSP is a modular product made up of:
- a H663 module-based motherboard having a mini-SIM size SAM card slot (ID-000 / 2FF size)
- a remote antenna linked by a thin micro-coax cable
Both cards measure 69x45mm (dimensions are shared by most of SpringCard OEM products) and are linked by a ribbon cable.
Two optional cards can complete the CrazyWriter HSP thanks to:
- 1 contact card slot (ID-1 / 1FF size)
- 3 additional mini-SIM sized SAM cards slots (ID-000 / 2FF size)
ORDER CODES
CrazyWriter-HSP: SC0168
3 SAM daughter board: SC0169
ID-1 slot expansion board: SC0170
DISCOVER PC/SC
Introduction to PC/SC and Quickstart for PC/SC
FIRMWARE UPGRADE
Link to Firmware Upgrade here.
KEY FEATURES
- All-in-one solution to read or write on a contact or a smartcard
- Directly powered by USB (JST SHR-5 industrial connector + classical mini-B USB connector)
- Custom antenna possible, option to drive two antennas
- 2-year limited warranty
- RoHS & WEEE compliant (environmental protection)
