TwistyWriter-IP RDR NFC
OEM contactless/RFID/NFC PC/SC interfaced over Ethernet couplers (remote antenna)
The TwistyWriter-IP PC/SC is perfect if you need to add a RFID HF/NFC reader/writer on your TCP/IP LAN network. It has a RJ45 10/100Mbps standard port and is supported by PC/SC drivers. The software integration and the application development are thus really easy.

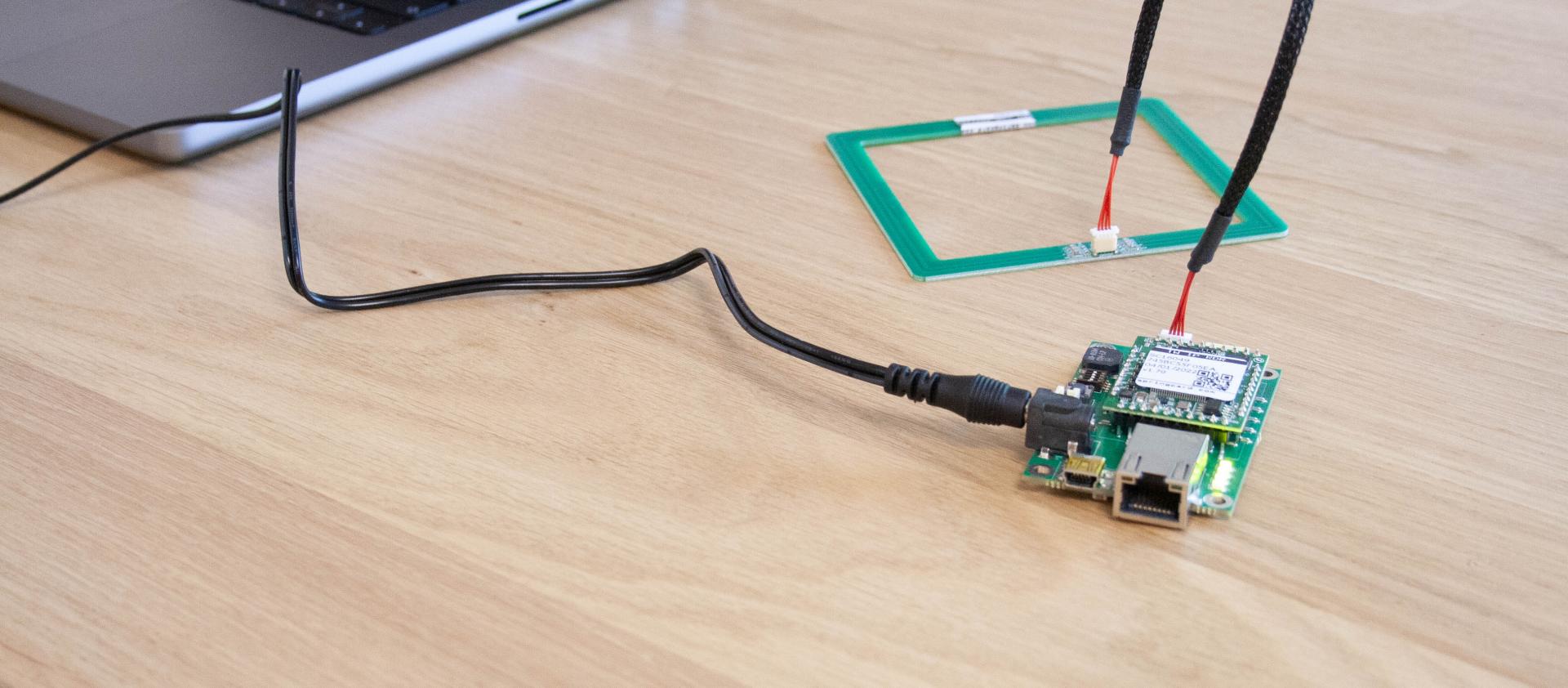

The TwistyWriter-IP PC/SC is made up of the E663 module-based motherboard and a remote antenna.
Both cards measure 69x45mm (dimensions are shared by most of SpringCard OEM products) and are linked by a ribbon cable. The TwistyWriter-IP PC/SC motherboard can also be associated with a balanced antenna according to your size constraints or the type of tag to support. The antenna can be with one of the SpringCard’s portfolio antennas or a custom-made one.
ORDER CODE
SC16091 (without antenna)
Discover PC/SC
KEY FEATURES
- First smartcard PC/SC over Ethernet coupler, as easy to use as an USB coupler
- PC/SC USB driver for Windows, Linux and other Unix (including MacOS X)
- Custom antenna possible
- 2-year limited warranty
- RoHS & WEEE compliant (environmental protection)
