TwistyWriter HSP PC/SC
Turnkey OEM USB PC/SC contactless/RFID/NFC coupler solution (remote antenna + 1 SAM slot)
The TwistyWriter HSP is a read/write RFID HF/NFC module and a SAM card reader to be added to any system with a USB host port and supporting PC/SC standard. The software integration and the application development are thus really easy. Moreover, the speed of the USB interface combined to the high rate of the ISO 14443 standard enable the TwistyWriter HSP to reach the best transaction speed.

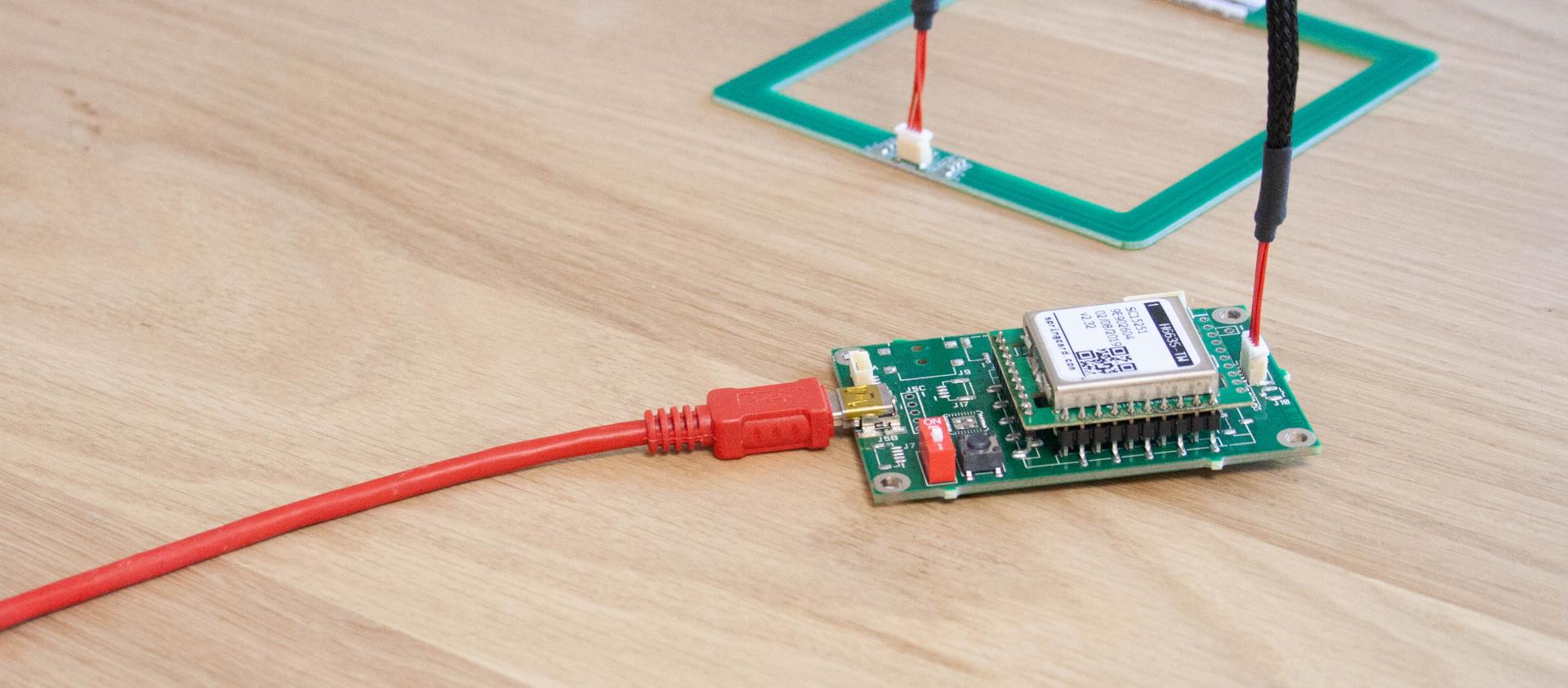

The TwistyWriter HSP is made up of:
- a H663 module-based motherboard having a mini-SIM size SAM card slot (ID-000 / 2FF size)
- a remote antenna
Each part measures 69x45mm (dimensions are shared by most of SpringCard OEM products) and are linked by a ribbon cable.
The TwistyWriter-HSP motherboard can also be associated with a custom-made balanced antenna or any SpringCard’s portfolio antenna according to your size constraints or the type of tag to support.
ORDER CODE
SC14190
KEY FEATURES
- PC/SC USB driver for Windows, Linux and other Unix (including MacOS X)
- Directly powered by USB (JST SHR-5 industrial connector + classical mini-B USB connector)
- Custom antenna possible
- 2-year limited warranty
- RoHS & WEEE compliant (environmental protection)
